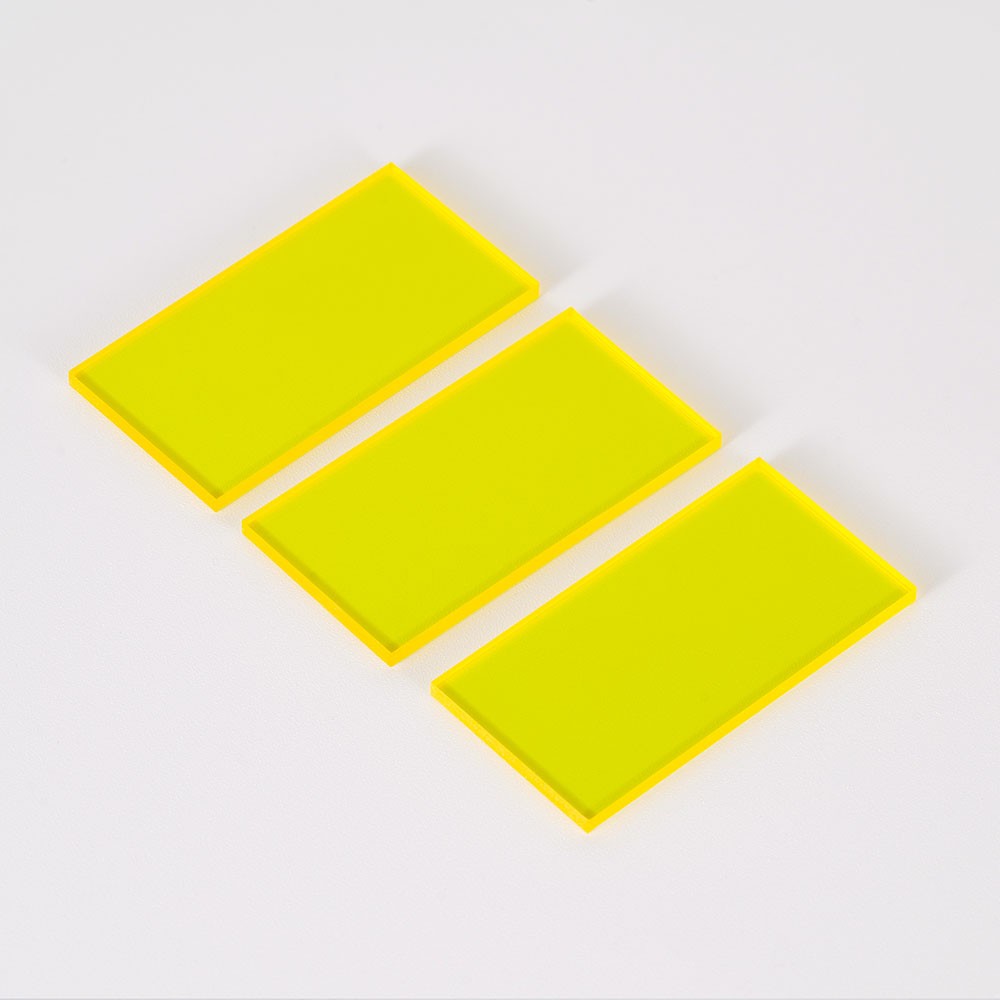

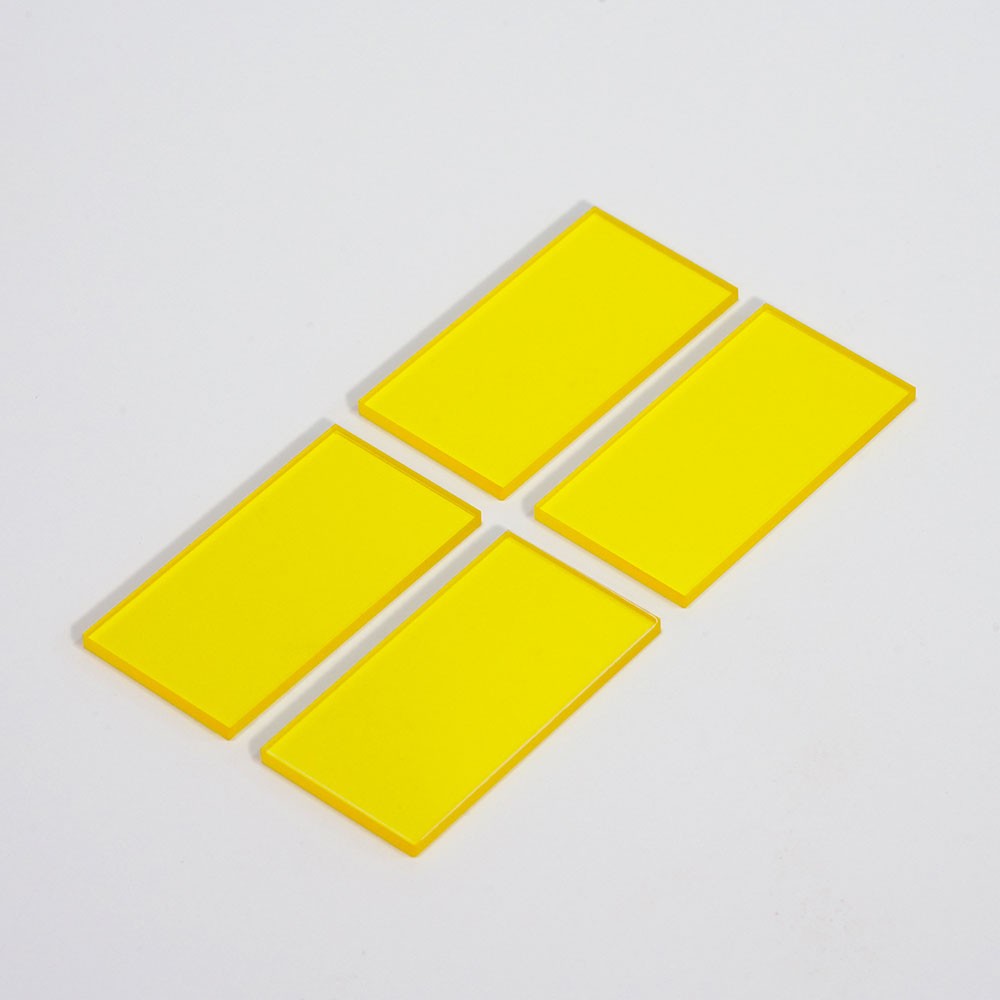

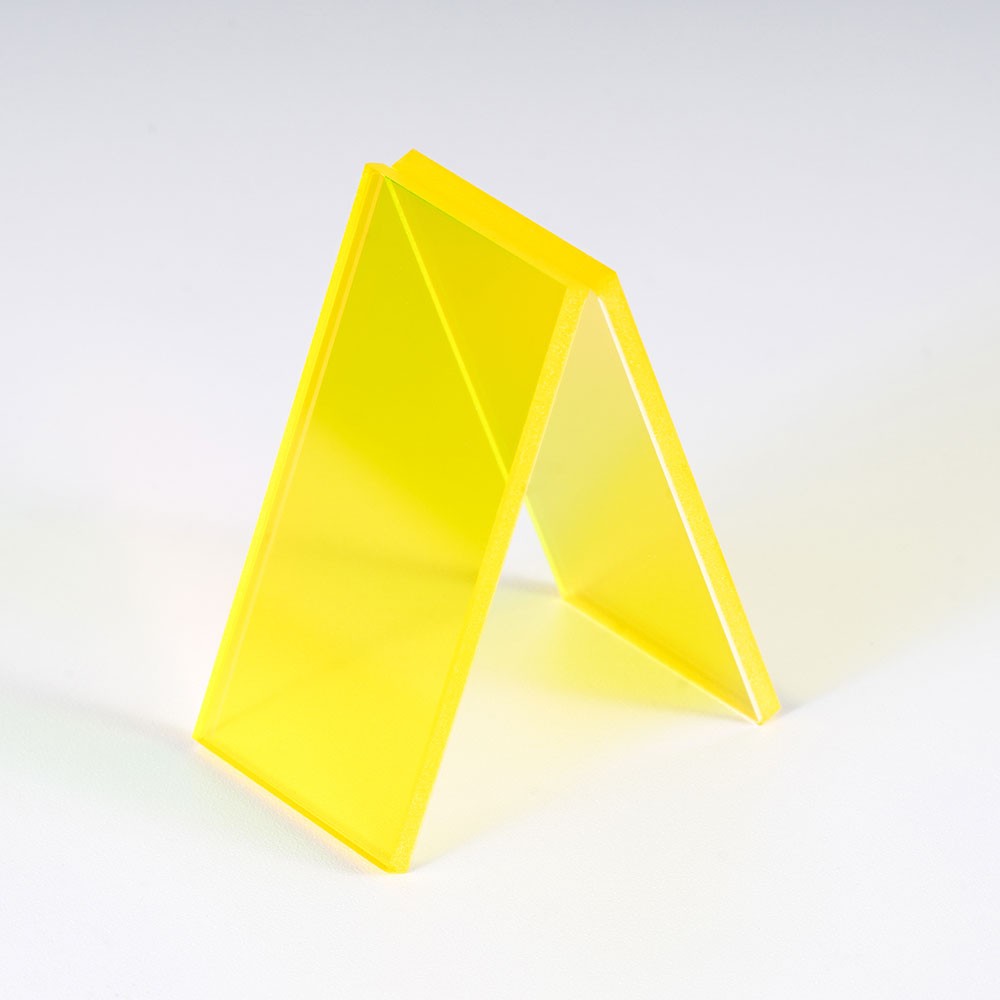

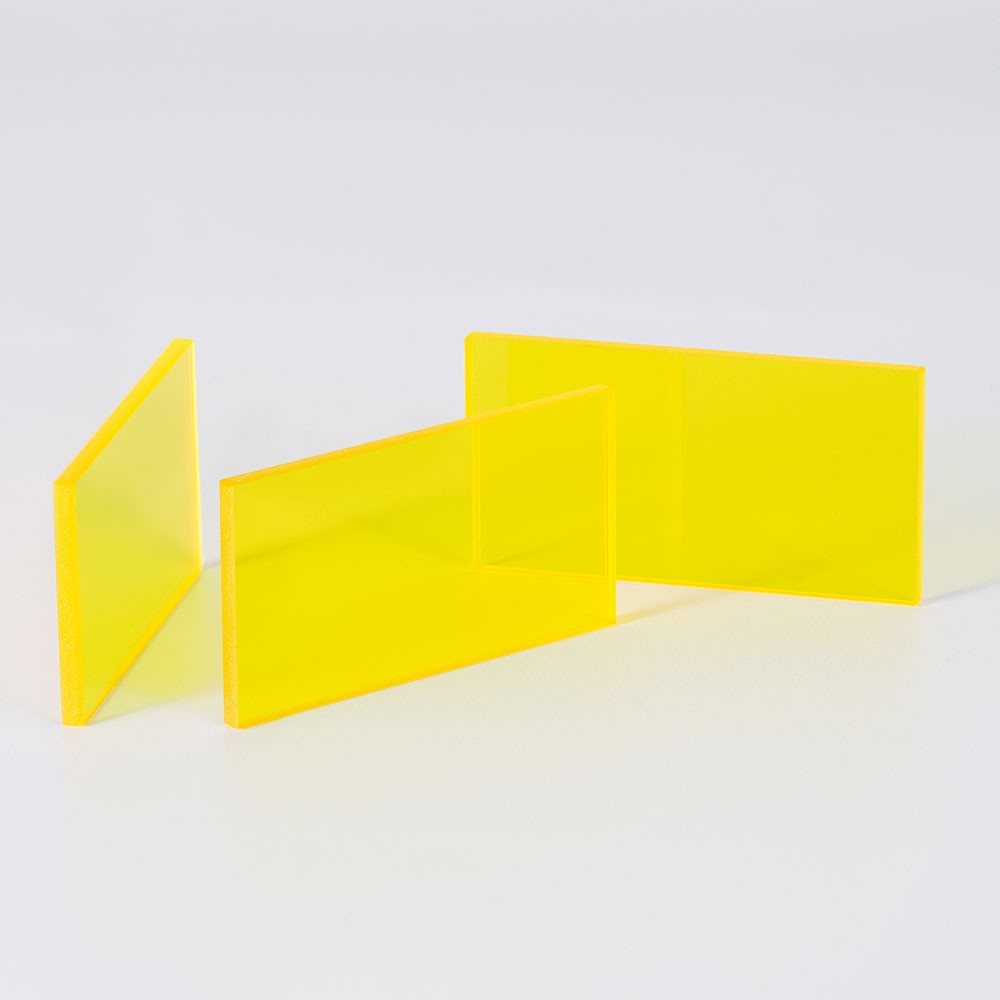

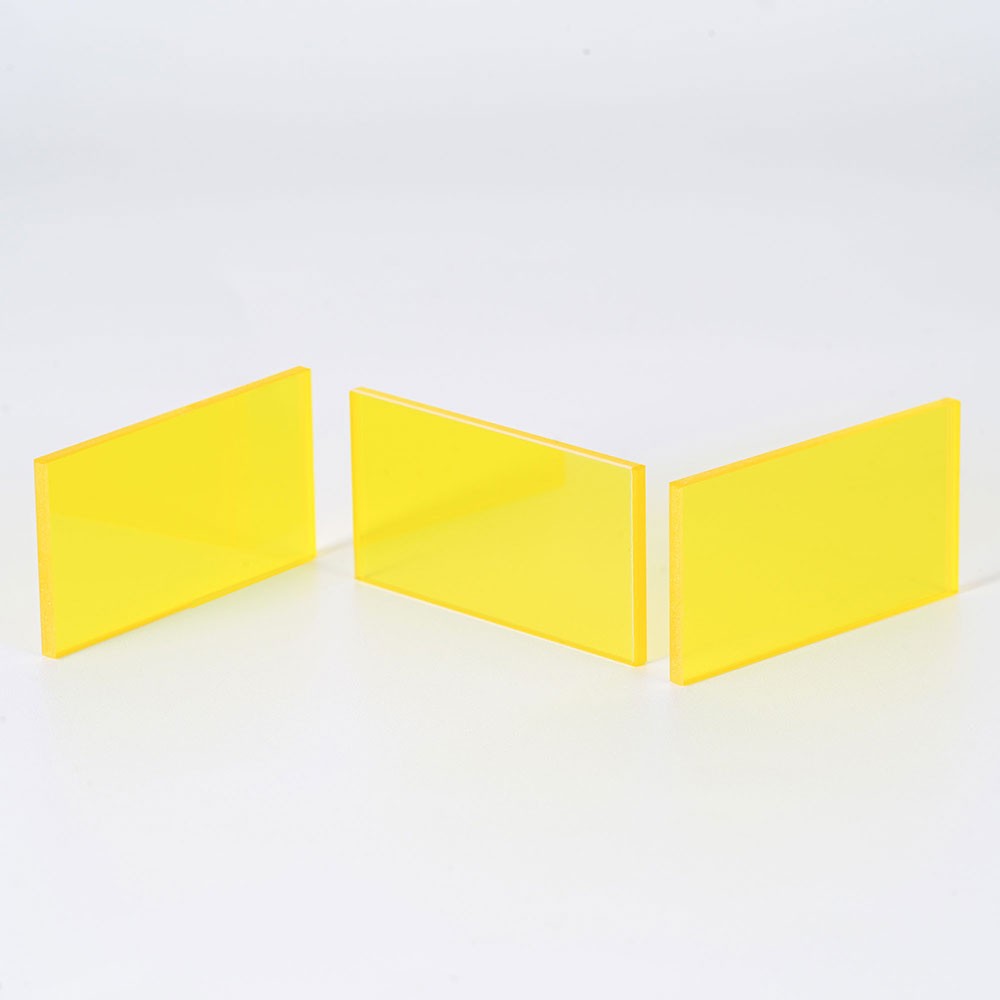

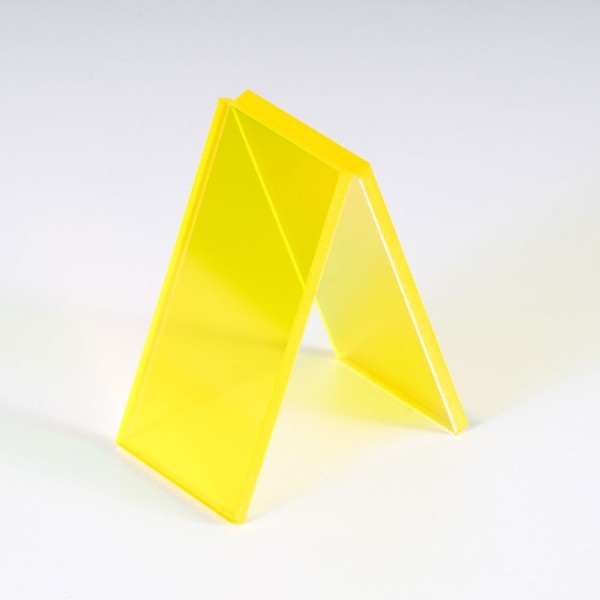

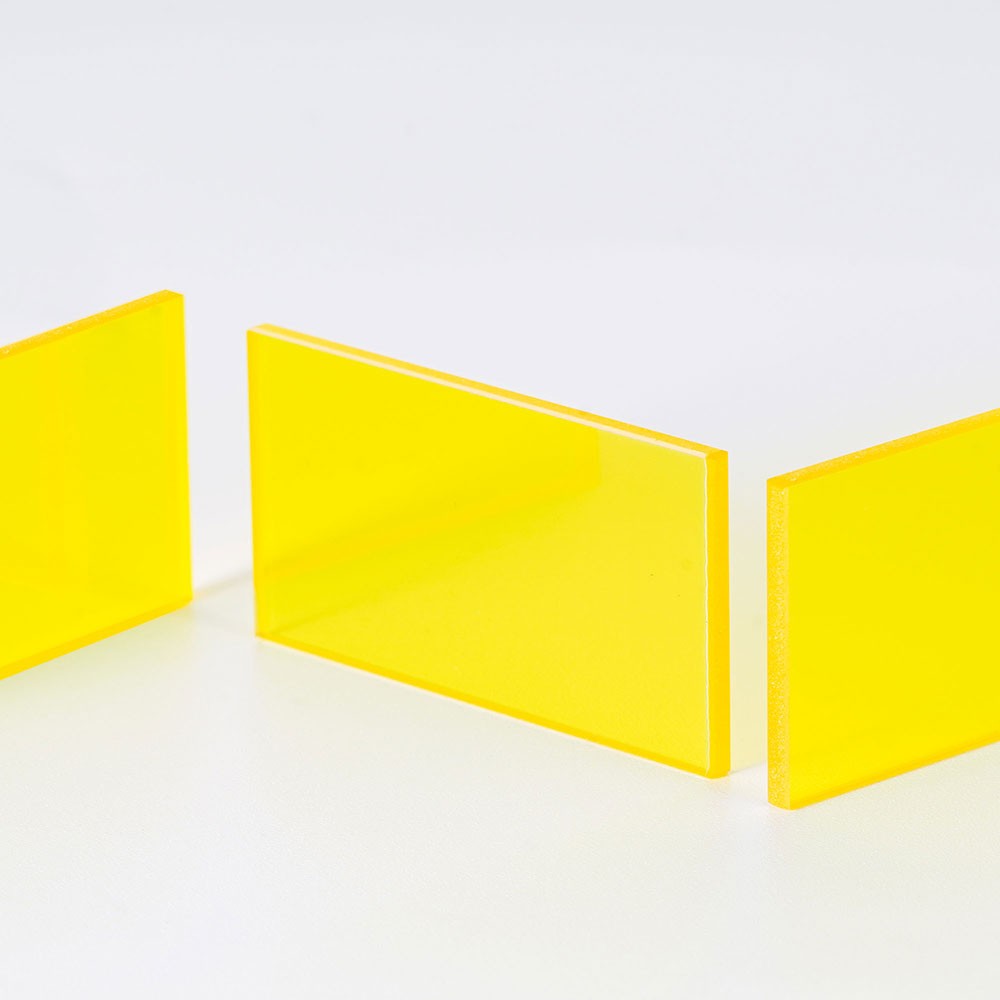

金黄绿色色(黄绿色)有机玻璃（滤光片） Golden(Yellow)Glass JB400 JB420 JB450 JB470 JB490 JB510 JB520
金黄的什么色的窗钢化玻离镀晶的窗钢化玻离是用磁控真空体溅射技巧，在的窗钢化玻离外层透亮地镀上双层轻金屬或轻金屬脱色物膜层，还有效地管控所以光和UV直射线的利用。给出各个标准可产量开朗管控膜、低光覆盖膜、低光覆盖开朗管控膜、导电膜等繁多系例的镀晶的窗钢化玻离厂品。
金灿色玻璃窗基本特征(Golden(yellow) Glass Characteristic)
|
牌 号 Type |
厚 度(mm) Thickness | A[2856K] | D65 |
化学稳定性 hemical Stability | ND | α×10-7 (/℃) |
Tg (℃) |
Ts (℃) | S | |||||
| x | y | Y | x | y | Y | DA | DW | |||||||
| JB400 | 2 | 0.450 | 0.410 | 96.3 | 0.316 | 0.336 | 94.2 | 1 | 1 | 1.632 | 95 | 497 | 555 | 3.65 |
| JB420 | 2 | 0.455 | 0.414 | 93.1 | 0.323 | 0.346 | 90.8 | 2 | 3 | 1.632 | 95 | 497 | 555 | 3.69 |
| JB450 | 2 | 0.492 | 0.461 | 94.7 | 0.401 | 0.488 | 90.7 | 1 | 3 | 1.523 | 103 | 527 | 605 | 2.64 |
| JB470 | 2 | 0.492 | 0.462 | 96.0 | 0.401 | 0.490 | 92.0 | 1 | 3 | 1.523 | 103 | 527 | 605 | 2.64 |
| JB490 | 2 | 0.502 | 0.468 | 94.5 | 0.422 | 0.514 | 89.6 | 1 | 3 | 1.523 | 103 | 527 | 605 | 2.64 |
| JB510 | 2 | 0.519 | 0.471 | 91.5 | 0.456 | 0.526 | 84.0 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
技术要求(Technical Indexes)
|
牌 号 Type |
厚 度(mm) Thickness | λtj(nm) | λ0(nm) | Tλ0(%) | K |
| JB400 | 2 | 400±10 | 560 | ≥86.0 | ≥0.6 |
| JB420 | 2 | 420±10 | 560 | ≥86.0 | ≥0.6 |
| JB450 | 2 | 450±10 | 560 | ≥89.5 | ≥0.6 |
| JB470 | 2 | 470±10 | 560 | ≥89.5 | ≥0.8 |
| JB490 | 2 | 490±10 | 580 | ≥89.5 | ≥1.2 |
| JB510 | 2 | 510±10 | 600 | ≥89.5 | ≥1.2 |
汽泡、纹路、应力比类級別(Class Of Bubble、Stripe、Stress)
|
牌 号 Type |
气 泡 Bubble |
条 纹 Stripe |
应 力 Stress |
| JB400 | C-B | 3C | 3 |
| JB420 | C-B | 3C | 3 |
| JB450 | C-B | 3C | 3 |
| JB470 | C-B | 3C | 3 |
| JB490 | C-B | 3C | 3 |
| JB510 | C-B | 3C | 3 |

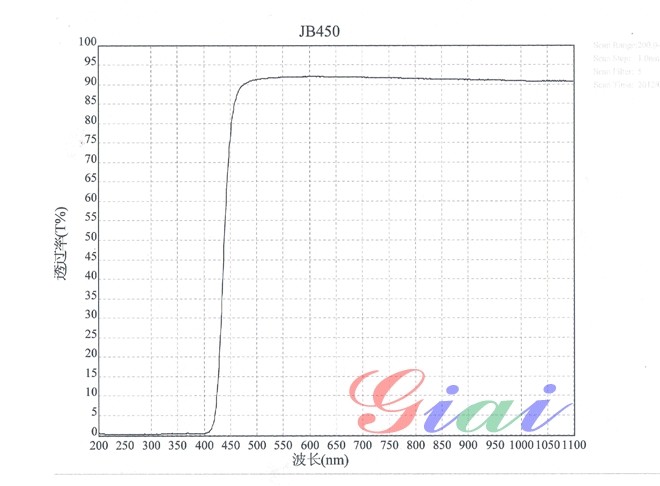

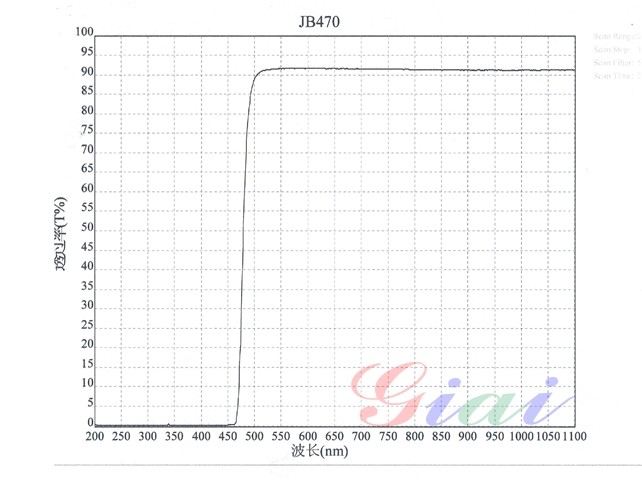

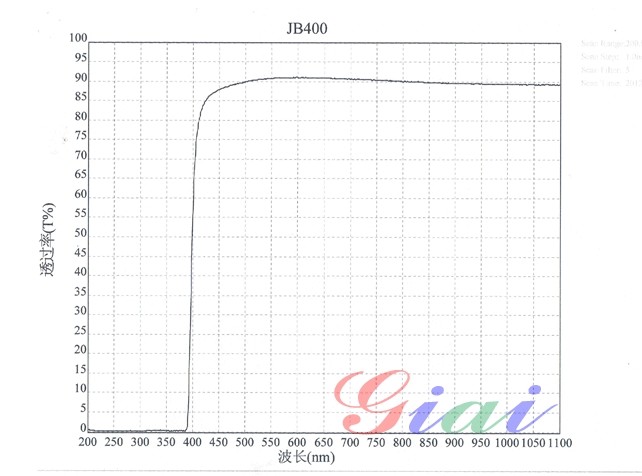

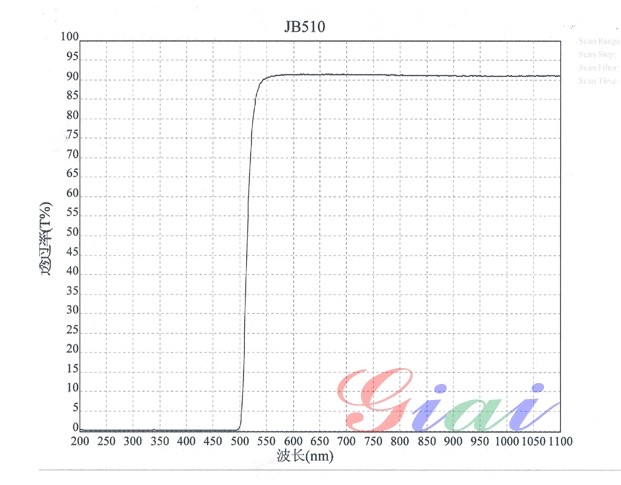

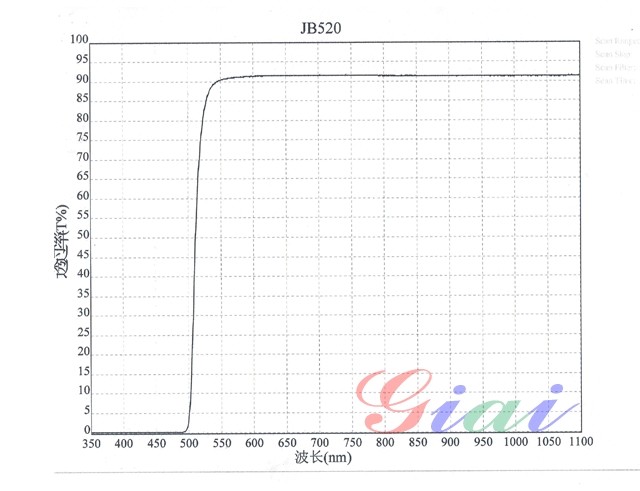

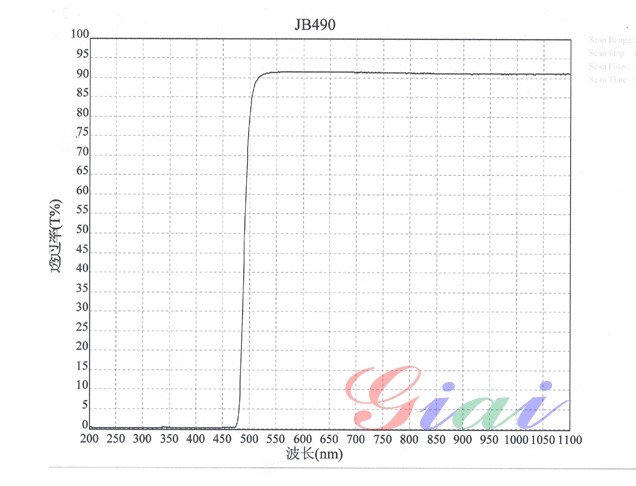

性能特点的趋势图(Wavelength)
